Backing Ring Flange Specification

  • Standard : AS 2129 Table D, E, F, H, J,K, R, S & T, ANSI, ASME, EN1092, JIS, SABS1123, GOST-12820, AS/NZS 4087
  • Dimensions : ANSI B16.5, ANSI B16.47, Series A & B
  • BS : BS4504, BS10
  • Class : 150 LBS, 300 LBS
  • Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
  • Size : ½” (15 NB) to 48″ (1200NB)
  • Type : Backing Ring Flange / Backup Flange
Backing Flanges
Backing Flange at Best Price in India
Backing Rings
Corrosion-Resistant Backing Rings
ANSI B16.5 Backing Ring Class 150 LBS
Back up Flange
Flange Backing Ring 180 × 6 & 20 × 1/2

Backing Ring Flange Dimensions, ANSI 150, Table D, ANSI 300, ANSI 600, DIN16, Table E, AS4087, DIN, Multi Flange, Table H F Backing Rings

Backing Ring Flange Applications and Uses

Our Backing Rings are used in a wide range of applications and various industries. Below are a few of them:

Refineries
Power Generation
Mining Industry
Engineering & General Piping
Offshore Oil Drilling Companies
Pharmaceuticals
Construction & Water Pipeline
Petrochemicals & Nuclear
Polypropylene Industry
Irrigation Industry
Mining Industry
Polypropylene Industry
Irrigation Industry
Mining Industry
Polypropylene Industry

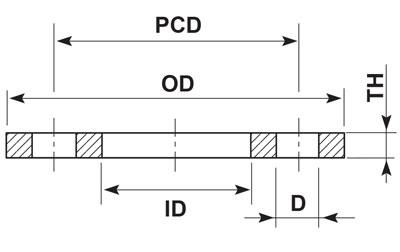

Backing Ring Flange Dimensions

BACKING RINGS: Galvanised ANSI 150.

BACKING RINGS: Galvanised ANSI 150 Dimensions
PE PIPE SIZE MM SIZE OD MM BOLT SIZE M ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
20 90 M14 20 GBR20A 60.5 15 4 16 0.22 0.5 6 ANSI CLASS 150
25 98 M14 37 GBR25A 70 20 4 16 0.36 0.75 8 ANSI CLASS 150
32 108 M14 44 GBR32A 79.5 25 4 16 0.043 1 8 ANSI CLASS 150
40 117 M14 52 GBR40A 89 32 4 16 0.49 1.25 8 ANSI CLASS 150
50 127 M14 62 GBR50A 98.5 40 4 16 0.7 1.5 10 ANSI CLASS 150
63 152 M18 78 GBR63A 120.5 50 4 20 0.95 2 10 ANSI CLASS 150
75 178 M18 92 GBR75A 139.5 65 4 20 1.34 2.5 10 ANSI CLASS 150
90 191 M18 108 GBR90A 152 80 4 20 1.72 3 12 ANSI CLASS 150
110 229 M18 128 GBR110A 190.5 100 8 20 2.44 4 12 ANSI CLASS 150
125 254 M20 140 GBR125A 216 125 8 23 4.02 5 16 ANSI CLASS 150
140 254 M20 158 GBR140A 216 125 8 23 3.49 5 16 ANSI CLASS 150
160 279 M20 178 GBR160A 241 150 8 23 4.15 6 16 ANSI CLASS 150
180 279 M20 195 GBR180A 241 150 8 23 3.52 6 16 ANSI CLASS 150
200 343 M20 235 GBR200A 298.5 200 8 23 7.19 8 20 ANSI CLASS 150
225 343 M20 240 GBR225A 298.5 200 8 23 6.9 8 20 ANSI CLASS 150
250 406 M24 290 GBR250A 362 250 12 26 8.98 10 20 ANSI CLASS 150
280 406 M24 300 GBR280A 362 250 12 26 8.25 10 20 ANSI CLASS 150
315 483 M24 345 GBR315A 432 300 12 26 16.4 12 25 ANSI CLASS 150
355 535 M27 376 GBR355A 476 350 12 29 23.32 14 28 ANSI CLASS 150
400 600 M27 430 GBR400A 540 400 16 29 31.97 16 32 ANSI CLASS 150
450 635 M28.4 480 GBR450A 578 450 16 32 34.8 18 36 ANSI CLASS 150
500 700 M28.4 533 GBR500A 635 500 20 32 45.84 20 40 ANSI CLASS 150
560 750 M32 590 GBR560A 692 560 20 35 53.98 22 46 ANSI CLASS 150
630 813 M32 660 GBR630A 749 600 20 35 62.07 24 50 ANSI CLASS 150
710 927 M32 745 GBR710A 863.5 700 28 35 83.43 28 50 ANSI CLASS 150
800 1060 M39 835 GBR800A 978 800 28 41 117.21 32 50 ANSI CLASS 150
900 1175 M39 950 GBR900A N/A 900 28 41 237.09 36 89 ANSI CLASS 150
1000 1290 M39 1030 GBR1000A 1124 1000 36 41 301.84 40 90 ANSI CLASS 150
1200 1510 M39 1235 GBR1200A 1142 1200 44 41 454.47 48 108 ANSI CLASS 150

BACKING RINGS: Galvanised ANSI 300.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M BOLT SIZE IMP ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER FLANGE SIZE INCHES TH MM PATTERN
630 914.4 M40 1 1/2 660 GBR630A300 812.8 600 24 42 24 68.4 ANSI CLASS 150
560 838.2 M40 1 1/2 590 GBR560A300 743 560 24 42 22 65.3 ANSI CLASS 150
500 774.7 M32 1 1/4 533 GBR500A300 685.8 500 24 35 20 61.9 ANSI CLASS 150
450 711.2 M32 1 1/4 480 GBR450A300 626.7 450 24 35 18 58.9 ANSI CLASS 150
400 647.7 M32 1 1/4 430 GBR400A300 571.5 400 20 35 16 55.6 ANSI CLASS 150
355 584.2 M30 1 1/8 376 GBR355A300 514.4 350 20 32 14 52.2 ANSI CLASS 150
315 520.7 M30 1 1/8 345 GBR315A300 450.9 300 16 32 12 49.2 ANSI CLASS 150
280 444.5 M26 1 300 GBR280A300 387.4 250 16 29 10 46 ANSI CLASS 150
250 444.5 M26 1 290 GBR250A300 387.4 250 16 29 10 46 ANSI CLASS 150
225 381 M24 7/8 240 GBR225A300 330.2 200 12 26 8 39.5 ANSI CLASS 150
200 381 M24 7/8 235 GBR200A300 330.2 200 12 26 8 39.5 ANSI CLASS 150
180 317.5 M20 3/4 195 GBR180A300 269.7 150 12 23 6 35 ANSI CLASS 150
160 317.5 M20 3/4 178 GBR160A300 269.7 150 12 23 6 35 ANSI CLASS 150
140 279.4 M20 3/4 158 GBR140A300 235 125 8 23 5 33.5 ANSI CLASS 150
125 279.4 M20 3/4 140 GBR125A300 235 125 8 23 5 33.5 ANSI CLASS 150
110 254 M20 3/4 128 GBR110A300 200.2 100 8 23 4 30.2 ANSI CLASS 150
90 209.6 M20 3/4 108 GBR90A300 168.1 80 8 23 3 26.8 ANSI CLASS 150
75 190.5 M20 3/4 92 GBR75A300 149.4 65 8 23 2.5 23.8 ANSI CLASS 150
63 165.1 M18 5/8 78 GBR63A300 127 50 8 20 2 20.8 ANSI CLASS 150
50 155.5 M20 3/4 62 GBR50A300 114.3 40 4 23 1.5 19 ANSI CLASS 150
40 133.4 M18 5/8 52 GBR40A300 98.6 32 4 20 1.25 17.5 ANSI CLASS 150
32 124 M18 5/8 44 GBR32A300 88.9 25 4 20 1 16.2 ANSI CLASS 150
25 117.3 M18 5/8 37 GBR25A300 82.6 20 4 20 0.75 14.1 ANSI CLASS 150
20 95.3 M14 5/8 32 GBR20A300 66.5 15 4 16 0.5 12.6 ANSI CLASS 150

BACKING RINGS: Galvanised ANSI 600.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M BOLT SIZE IMP ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER FLANGE SIZE INCHES TH MM PATTERN
20 95.3 M14 1/2 32 GBR20A600 66.5 15 4 16 0.5 14.2 ANSI CLASS 150
25 117.3 M18 5/8 37 GBR25A600 82.6 20 4 20 0.75 15.7 ANSI CLASS 150
32 124 M18 5/8 44 GBR32A600 88.9 25 4 20 1 17.5 ANSI CLASS 150
40 133.4 M18 5/8 52 GBR40A600 98.6 32 4 20 1.25 20.6 ANSI CLASS 150
50 155.4 M20 3/4 62 GBR50A600 114.3 40 4 24 1.5 22.4 ANSI CLASS 150
63 165.1 M18 5/8 78 GBR63A600 127 50 8 20 2 25.4 ANSI CLASS 150
75 190.5 M20 3/4 92 GBR75A600 149.4 65 8 24 2.5 28.4 ANSI CLASS 150
90 209.6 M20 3/4 108 GBR90A600 168.1 80 8 24 3 31.8 ANSI CLASS 150
110 273.1 M24 7/8 128 GBR110A600 215.9 100 8 24 4 38.1 ANSI CLASS 150
125 330.2 M26 1 140 GBR125A600 266.7 125 8 29 5 44.5 ANSI CLASS 150
140 330.2 M26 1 158 GBR140A600 266.7 125 8 29 5 44.5 ANSI CLASS 150
160 355.6 M26 1 178 GBR160A600 292.1 150 12 29 6 47.8 ANSI CLASS 150
180 355.6 M26 1 195 GBR180A600 292.1 150 12 29 6 47.8 ANSI CLASS 150
200 419.1 M30 1 1/8 235 GBR200A600 349.3 200 12 32 8 55.6 ANSI CLASS 150
225 419.1 M30 1 1/8 240 GBR225A600 349.3 200 12 32 8 55.6 ANSI CLASS 150
250 508 M32 1 1/4 290 GBR250A600 431.8 250 16 35 10 63.5 ANSI CLASS 150
280 508 M32 1 1/4 300 GBR280A600 431.8 250 16 35 10 63.5 ANSI CLASS 150
315 558.8 M32 1 1/4 345 GBR315A600 489 300 20 35 12 66.5 ANSI CLASS 150
355 603.3 M36 1 3/8 376 GBR355A600 527.1 350 20 38 14 69.9 ANSI CLASS 150
400 685.8 M40 1 1/2 430 GBR400A600 603.3 400 20 42 16 76.2 ANSI CLASS 150
450 743 M42 1 5/8 480 GBR450A600 654.1 450 24 44 18 82.6 ANSI CLASS 150
500 812.8 M42 1 5/8 533 GBR500A600 723.9 500 24 44 20 88.9 ANSI CLASS 150
560 870 M45 1 3/4 590 GBR560A600 778 560 24 48 22 65.3 ANSI CLASS 150
630 939.8 M48 N/A 660 GBR630A600 838.2 600 24 51 24 101.6 ANSI CLASS 150

BACKING RINGS: Galvanised DIN16.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M BOLT SIZE IMP ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
32 115 M12 0.78 44 GBR32DIN 85 25 4 14 0.78 1 12 DIN16
40 140 M16 1.35 52 GBR40DIN 100 32 4 18 1.35 1.25 14 DIN16
50 150 M16 1.5 62 GBR50DIN 110 40 4 18 1.5 1.25 14 DIN16
63 165 M16 1.96 78 GBR63DIN 125 50 4 18 1.96 2 16 DIN16
75 185 M16 2.29 92 GBR75DIN 145 65 8 18 2.29 2.5 16 DIN16
90 200 M16 2.86 108 GBR90DIN 160 80 8 18 2.86 3 18 DIN16
110 220 M16 3.27 128 GBR110DIN 180 100 8 18 3.27 4 18 DIN16
125 250 M16 6.23 140 GBR1255DIN 210 125 8 18 6.23 5 25 DIN16
125 220 M16 2.92 140 GBR1254DIN 180 100 8 18 2.92 4 18 DIN16
140 250 M16 3.89 158 GBR140DIN 210 125 8 18 3.89 5 18 DIN16
160 285 M20 5.64 178 GBR160DIN 240 150 8 22 5.64 6 20 DIN16
180 285 M20 4.86 195 GBR180DIN 240 150 8 22 4.86 6 20 DIN16
200 340 M20 8.09 235 GBR200DIN 295 200 12 22 8.09 8 24 DIN16
225 340 M20 7.74 240 GBR225DIN 295 200 12 22 7.74 8 24 DIN16
250 405 M24 13.31 290 GBR250DIN 355 250 12 26 13.31 10 30 DIN16
280 405 M24 12.22 300 GBR280DIN 355 250 12 26 12.22 10 30 DIN16

BACKING RINGS: Galvanised Table E.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
20 95 M12 32 GBR20E 67 15 4 14 0.27 0.25 6 TABLE E AS2129
25 100 M12 37 GBR25E 73 20 4 14 0.29 0.75 6 TABLE E AS2129
32 115 M12 44 GBR32E 83 25 4 14 0.45 1 7 TABLE E AS2129
40 120 M12 52 GBR40E 87 25 4 14 0.54 1 8 TABLE E AS2129
50 135 M12 62 GBR50E 98 40 4 14 0.76 1.5 9 TABLE E AS2129
63 150 M16 78 GBR63E 114 50 4 18 0.93 2 10 TABLE E AS2129
75 165 M16 92 GBR75E 127 65 4 18 1.08 2.5 10 TABLE E AS2129
90 185 M16 108 GBR90E 146 80 4 18 1.58 3 12 TABLE E AS2129
110 215 M16 128 GBR110E 178 100 8 18 2.24 4 13 TABLE E AS2129
125 255 M16 140 GBR1255E 210 125 8 18 3.7 5 14 TABLE E AS2129
125 215 M16 140 GBR1254E 178 100 8 18 1.93 4 13 TABLE E AS2129
140 255 M16 158 GBR140E 210 125 8 18 3.23 5 14 TABLE E AS2129
160 280 M20 178 GBR160E 235 150 8 22 4.6 6 17 TABLE E AS2129
180 280 M20 195 GBR180E 235 150 8 22 4.22 6 17 TABLE E AS2129
200 335 M20 235 GBR200E 292 200 8 22 6.5 8 19 TABLE E AS2129
225 335 M20 240 GBR225E 292 200 8 22 5.95 8 19 TABLE E AS2129
250 405 M20 290 GBR250E 356 250 12 22 10.05 10 22 TABLE E AS2129
280 405 M20 300 GBR280E 356 250 12 22 9.25 10 22 TABLE E AS2129
315 455 M24 345 GBR315E 406 300 12 26 12.31 12 25 TABLE E AS2129
355 525 M24 376 GBR355E 470 350 12 26 22.96 14 29 TABLE E AS2129
400 580 M24 430 GBR400E 521 400 12 26 29.13 16 32 TABLE E AS2129
450 640 M24 480 GBR450E 584 450 16 26 36.33 18 32 TABLE E AS2129
500 705 M24 533 GBR500E 641 500 16 26 47.35 20 38 TABLE E AS2129
560 760 M27 590 GBR560E 699 560 16 30 58.35 22 44 TABLE E AS2129
630 825 M30 660 GBR630E 756 600 16 33 67.36 24 48 TABLE E AS2129
710 910 M30 745 GBR710E 845 700 20 33 79.01 28 51 TABLE E AS2129
800 1060 M33 835 GBR800E 984 800 20 36 133.64 32 54 TABLE E AS2129
900 1175 M33 950 GBR900E 1092 900 24 36 176.81 36 64 TABLE E AS2129
1000 1255 M36 1035 GBR1000E 1175 1000 24 39 193.49 40 67 TABLE E AS2129
1200 1490 M36 1240 GBR1200E 1410 1200 32 39 309.45 48 79 TABLE E AS2129

BACKING RINGS: Galvanised AS4087.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M BOLT SIZE IMP ID MM CODE PRESSURE RATING PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
63 150 M16 1.03 78 GBR6316 PN16 114 50 4 18 1.03 2 11 AS4087
75 165 M16 1.19 92 GBR7516 PN16 127 65 4 18 1.19 2.5 11 AS4087
90 185 M16 1.45 108 GBR9016 PN16 146 80 4 18 1.45 3 11 AS4087
110 215 M16 2.29 128 GBR11016 PN16 178 100 4 18 2.29 4 13 AS4087
160 280 M16 3.54 178 GBR16016 PN16 235 150 8 18 3.54 6 13 AS4087
180 280 M16 3.04 195 GBR18016 PN16 235 150 8 18 3.04 6 13 AS4087
200 335 M16 3.04 240 GBR22516 PN16 292 200 8 18 3.04 8 19 AS4087
200 335 M16 3.04 235 GBR20016 PN16 292 200 8 18 3.04 8 19 AS4087
225 370 M16 6.39 238 GBR225916 PN16 324 225 8 18 6.39 9 19 AS4087
250 405 M20 6.11 290 GBR25016 PN16 356 250 8 22 6.11 10 19 AS4087
280 405 M20 8.24 300 GBR28016 PN16 356 250 8 22 8.24 10 19 AS4087
315 455 M20 11.86 345 GBR31516 PN16 406 300 12 22 11.86 12 23 AS4087
355 525 M24 23.39 376 GBR35516 PN16 470 350 12 26 23.39 14 30 AS4087
400 580 M24 26.58 430 GBR40016 PN16 521 400 12 26 26.58 16 30 AS4087
450 640 M24 31.72 480 GBR45016 PN16 584 450 12 26 31.72 18 30 AS4087
500 705 M24 47.47 533 GBR50016 PN16 641 500 16 26 47.47 20 38 AS4087
630 825 M27 68.41 660 GBR63016 PN16 756 600 16 30 68.41 24 48 AS4087
710 910 M27 88.28 740 GBR71016 PN16 845 700 20 30 88.28 28 56 AS4087
800 1060 M33 138.59 843 GBR80016 PN16 984 800 20 36 138.59 32 56 AS4087
900 1175 M33 182.33 947 GBR90016 PN16 1092 900 24 36 182.33 36 66 AS4087
1000 1255 M33 301.08 1050 GBR100016 PN16 1175 1000 24 36 301.08 40 66 AS4087
1200 1490 M33 301.08 1270 GBR120016 PN16 1410 1200 32 36 301.08 48 76 AS4087

BACKING RINGS: Galvanised Multi Flange.

PE PIPE SIZE MM ID MM CODE FLANGE SIZE MM WEIGHT KG FLANGE SIZE INCHES
63 73 GBR63MF 50 0.75 2
75 86 GBR75MF 65 1.05 2.5
90 115 GBR90MF 80 1.15 3

BACKING RINGS: Galvanised Table D.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
110 215 M16 128 GBR110D 178 100 4 18 1.76 4 10 TABLE D AS219
160 280 M16 178 GBR160D 235 150 8 18 3.54 6 13 TABLE D AS219
180 280 M16 195 GBR180D 235 150 8 18 3.04 6 13 TABLE D AS219
200 335 M16 235 GBR200D 292 200 8 18 4.37 8 13 TABLE D AS219
225 335 M16 240 GBR225D 292 200 8 18 4018 8 13 TABLE D AS219
225 370 M20 240 GBR2259D 324 225 12 22 7.27 9 16 TABLE D AS219
250 405 M20 290 GBR250D 356 250 8 22 7.52 10 16 TABLE D AS219
250 370 M20 252 GBR2509D 324 225 12 22 6.68 9 16 TABLE D AS219
280 405 M20 300 GBR280D 356 250 8 22 6.94 10 16 TABLE D AS219
315 455 M20 345 GBR315D 406 300 12 22 9.65 12 19 TABLE D AS219
355 525 M24 376 GBR355D 470 350 12 26 17.15 14 22 TABLE D AS219
355 550 M24 376 GBR35515D 495 375 12 26 20.8 15 22 TABLE D AS219
400 580 M24 430 GBR400D 521 400 12 26 19.5 16 22 TABLE D AS219
400 550 M24 406 GBR40015D 495 375 12 26 17.61 15 22 TABLE D AS219
450 640 M24 480 GBR450D 584 450 12 26 26.43 18 25 TABLE D AS219
500 705 M24 533 GBR500D 641 500 16 26 36.22 20 29 TABLE D AS219
560 760 M27 590 GBR560D 699 560 16 30 42.54 22 32 TABLE D AS219
630 825 M27 660 GBR630D 756 600 16 30 45.61 24 32 TABLE D AS219
710 910 M27 745 GBR710D 845 700 20 30 55.17 28 35 TABLE D AS219
800 1060 M33 925 GBR800D 984 800 20 36 101.47 32 41 TABLE D AS219
900 1175 M33 950 GBR900D 1092 900 24 36 132.6 36 48 TABLE D AS219
1000 1255 M33 1035 GBR1000D 1175 1000 24 36 148.98 40 51 TABLE D AS219
1200 1490 M33 1240 GBR1200D 1410 1200 32 36 237.69 48 60 TABLE D AS219

BACKING RINGS: Galvanised Table F H.

PE PIPE SIZE MM SIZE OD MM BOLT SIZE M BOLT SIZE IMP ID MM CODE PCD FLANGE SIZE MM NO BOLT HOLES BOLT HOLE DIAMETER WEIGHT KG FLANGE SIZE INCHES TH MM PATTERN
20 95 M12 0.45 32 GBR20FH 67 15 4 14 0.45 0.5 10 TABLE F H AS2129
25 100 M12 0.48 37 GBR25FH 73 20 4 14 0.48 0.75 10 TABLE F H AS2129
32 120 M16 0.69 44 GBR32FH 87 25 4 18 0.69 1 10 TABLE F H AS2129
40 135 M16 1.14 52 GBR40FH 98 32 4 18 1.14 1.25 13 TABLE F H AS2129
50 140 M16 1.16 62 GBR50FH 105 40 4 18 1.16 1.5 13 TABLE F H AS2129
63 165 M16 1.96 78 GBR63FH 127 50 4 18 1.96 2 16 TABLE F H AS2129
75 185 M16 2.29 92 GBR75FH 146 65 8 18 2.29 2.5 16 TABLE F H AS2129
90 205 M16 2.75 108 GBR90FH 165 80 8 18 2.75 3 16 TABLE F H AS2129
110 230 M16 3.98 128 GBR110FH 191 100 8 18 3.98 4 19 TABLE F H AS2129
125 280 M20 7.47 140 GBR125FH 235 125 8 22 7.47 5 22 TABLE F H AS2129
140 280 M20 6.74 158 GBR140FH 235 125 8 22 6.74 5 22 TABLE F H AS2129
160 305 M20 7.55 178 GBR160FH 260 150 12 22 7.55 6 22 TABLE F H AS2129
180 305 M20 6.69 195 GBR180FH 260 150 12 22 6.69 6 22 TABLE F H AS2129
200 370 M20 11.72 235 GBR200FH 324 200 12 22 11.72 8 25 TABLE F H AS2129
225 370 M20 11.35 240 GBR225FH 324 200 12 22 11.35 8 25 TABLE F H AS2129
250 430 M24 16.61 290 GBR250FH 381 250 12 26 16.61 10 29 TABLE F H AS2129
280 430 M24 15.55 300 GBR280FH 381 250 12 26 15.55 10 29 TABLE F H AS2129
315 490 M24 21.8 345 GBR315FH 438 300 16 26 21.8 12 32 TABLE F H AS2129
355 550 M27 31.74 376 GBR355FH 495 350 16 30 31.74 14 35 TABLE F H AS2129
400 610 M27 42.87 430 GBR400FH 552 400 20 30 42.87 16 41 TABLE F H AS2129
450 675 M30 55.32 480 GBR450FH 610 450 20 33 55.32 18 44 TABLE F H AS2129
500 735 M30 72.49 533 GBR500FH 673 500 24 33 72.49 20 51 TABLE F H AS2129
560 785 M30 80.76 590 GBR560FH 724 560 24 33 80.76 22 54 TABLE F H AS2129
630 850 M33 90.11 660 GBR630FH 781 600 24 36 90.11 24 57 TABLE F H AS2129
710 935 M33 106.83 745 GBR710FH 857 700 24 36 106.83 28 60 TABLE F H AS2129

Documentation & Packaging

Commercial Invoice including HS Code

Packing List including Complete Details

Certificate of Origin legalized

Material Traceability Records

Quality Assurance Plan (QAP)

Heat Treatment Charts

Material Test Certificates (MTC)

NABL approved Laboratory Test Reports

(+91) 9769855565

Material Testing

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test

Specialized Products
Global Supplier
World Map
WORLDWIDE DISTRIBUTORS

Australia | New Zealand | USA | South Africa | UK | Egypt | Iran | Iraq | Saudi Arabia | Yemen | Syria | Jordan | United Arab Emirates | Israel | Lebanon | Oman | Palestinian Territories | Kuwait | Qatar | Bahrain | Cyprus | Turkey
